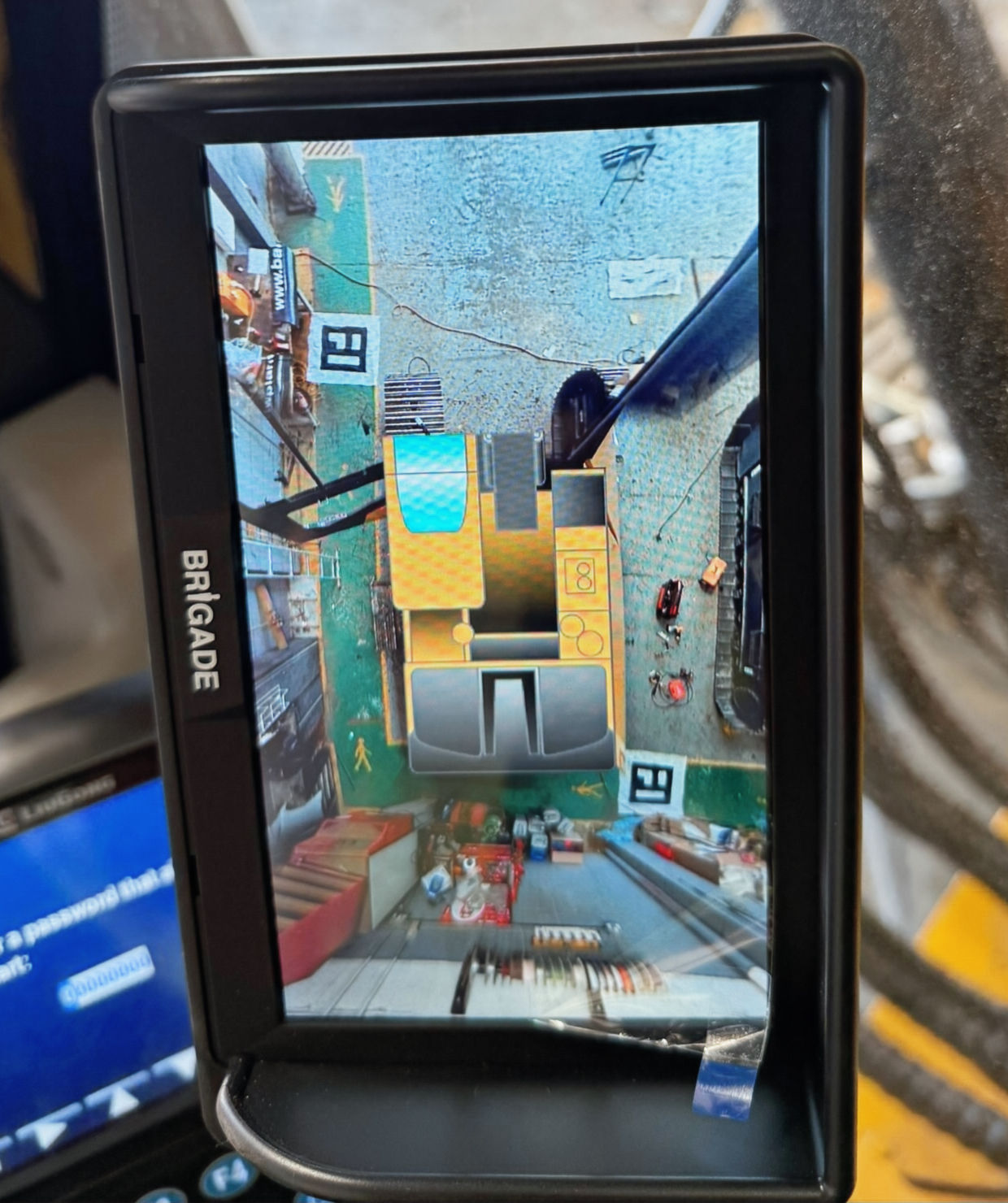

Brigade Backeye®360 AI camera system with Human Form Recognition (HFR)
The Brigade Backeye®360 AI Camera System with Human Form Recognition (HFR) – VBV-360-1000 is an advanced 360-degree HD camera system designed to improve visibility and enhance safety on construction and plant vehicles. Combining Brigade's industry-leading bird's-eye camera technology with Artificial Intelligence (AI) and Human Form Recognition (HFR), the system provides operators with a complete surround view while intelligently detecting people working around the machine.
Using four high-definition ultra-wide-angle cameras, the system creates a seamless 360° bird's-eye view, allowing operators to monitor every angle of the vehicle when manoeuvring on busy construction sites, highways, quarries and industrial environments. The integrated AI technology continuously detects human forms in real time and provides instant visual and audible warnings, helping operators avoid collisions with ground workers, contractors and members of the public.
Designed for demanding construction environments, the Backeye®360 AI system significantly reduces blind spots and improves operator awareness when reversing, loading, lifting or working in confined spaces. Whether fitted to a telehandler, dumper, excavator or loader, the VBV-360-1000 helps improve site safety, reduce equipment damage and support safer machine operation throughout the working day.
Built to Brigade's renowned standards, the system delivers crystal-clear HD images in all weather conditions and integrates seamlessly with Brigade radar, ultrasonic detection systems and mobile digital recording systems, providing a complete vehicle safety solution for construction and plant fleets.
Key Features
Genuine Brigade Backeye®360 AI camera system
Advanced Human Form Recognition (HFR) using Artificial Intelligence
Complete 360° bird's-eye surround view
Four high-definition wide-angle cameras
Detects workers and pedestrians around the vehicle
Visual and audible operator alerts when human forms are identified
Helps eliminate blind spots and reduce low-speed collisions
Crystal-clear HD image quality
Improves safety when manoeuvring, reversing and operating on-site
Integrates with Brigade radar, ultrasonic sensors and MDR recording systems
Heavy-duty components designed for harsh construction and plant environments
Suitable for a wide range of construction and plant machinery
Backed by Brigade's 3-Year Warranty
Benefits
Improve operator visibility around the entire machine
Help protect site workers, contractors and pedestrians
Reduce blind spot incidents in busy construction environments
Improve safety during loading, lifting and reversing operations
Minimise costly vehicle and equipment damage
Increase operator confidence and site safety compliance
Part number: 7524
Specification Overview
12-24Vdc
AHD 2.0 (1080p)
15 view modes
2 x video outputs
Viewing angle (HxV): 190° x 130°
Size (WxHxD)
ECU: 140 x 122 x 40mm
Camera: 140 x 63 x 54mm
3-year warranty
Features
1080p HD 360° image
15 different view modes (10 x landscape & 5 x portrait configuations)
– Front & rear crossing-traffic
– Customisable vehicle position
2 pre-defined configuration groups
Configure & customise set up via PC calibration software
Left, right, reverse & speed signal triggers
Configurable on-screen parking markers
Customisable overlay guidelines per camera view
2 x video outputs
Ultra-wide viewing angle cameras: (HxV) 190° x 130°
1/4” CMOS sensor
Video output: AHD 2.0 and NTSC
Recordable on Brigade MDR Recorders
Contents
1 x ECU
4 x VBV-2230-C-AI cameras
1x Interface Harness
1x Power Harness
1x Video Input Harness
1x Video Output Harness
1x Video Output Cable
1x 5m Extension Cable
2x 10 m Extension Cable
1x 20 m Extension Cable
Power
Power consumption: 15 Watts
Current: 1.22 Amps
Durability & Standards
Mechanical vibration: 2.8G
Operating temperature: -20 to +75°C
IP30 ECU
CE marked
E-Marked: UNECE R10 compliant
FCC Approved
IC Approved
UNECE R158 compliant
Suitable for
Backhoe Loader, Excavator, Telehandlers, Large Dumper, Medium Dumper, Site Dumper & Road Roller
Note: Calibration mats are required for installation
