Brigade Select Monitor, 7 Inch LCD High Resolution VBV-770HM

£396.28 Regular Price
£317.03Sale Price
Quantity

The Brigade VBV-770HM 7" Select Monitor is a high-resolution, AHD-compatible vehicle monitor designed to provide clear and reliable camera images on construction and plant machinery. With three camera inputs, three automatic trigger functions and compatibility with both AHD and CVBS camera systems, this versatile monitor is ideal for improving operator visibility and reducing blind spots around heavy machinery.


The 7-inch high-resolution LCD display provides a clear and detailed image, helping operators monitor areas around the machine when reversing, manoeuvring, loading, unloading and working in confined spaces. The wide viewing angle, anti-glare screen and automatic dimming function help maintain excellent visibility in changing light conditions, while the supplied sunshield helps reduce glare when working outdoors.


The VBV-770HM supports AHD 1.0, AHD 2.0, PAL and NTSC, allowing it to work with a wide range of compatible Brigade camera systems. With three camera inputs and three automatic triggers, multiple cameras can be connected for rear, front, nearside or auxiliary monitoring. The Mirror/Normal switching function allows the displayed image to be configured to suit the camera position and application.


Built for demanding construction and plant environments, the monitor operates from 12-24Vdc and has been tested to withstand significant mechanical vibration and shock. With an operating temperature range of -30°C to +70°C, the VBV-770HM is designed to provide reliable performance in harsh outdoor and industrial conditions.


Key Features

  • Genuine Brigade VBV-770HM 7" Select Monitor

  • High-resolution LCD display

  • AHD and CVBS compatible

  • Supports AHD 1.0 / AHD 2.0 / PAL / NTSC

  • 3 camera inputs

  • 3 automatic camera triggers

  • Mirror/Normal image switching via menu

  • Button lock anti-tamper feature

  • On-screen distance markers

  • Audio support

  • Automatic dimming

  • Anti-glare screen

  • Supplied sunshield

  • Multi-language menus

  • Wide viewing angle

  • LED backlighting with up to 20,000 hours operating life

  • Suitable for 12-24Vdc vehicle systems

  • 10W power consumption

  • Rugged construction for demanding construction and plant applications


Part number: 5611


Specification Overview

12-24Vdc

Size (WxHxD)

196 x 118 x 26mm


Features

  • AHD and CVBS compatible

  • High definition, high contacts, wide view angle

  • 3 camera inputs

  • 3 Auto-triggers

  • Mirror/Normal switching from menu

  • ‘Button lock’ anti-tamper feature

  • On-screen distance markers

  • Audio

  • Sun shield

  • Auto-dimmer

  • Multi-lingual menus

  • Auto-switching AHD 1.0 / AHD 2.0 /PAL/NTSC


Picture Quality

  • Resolution: 1024 x 600

  • Contrast Ratio: 700:1

  • Brightness: 500 cd/m²

  • Viewing Angle: 85° Side / 85° Top / 85° Bottom

  • Anti-glare display

  • LED backlighting (Gives 20,000 hours life)


Contents

  • 1 x Monitor

  • 1 x Cable Adapter

  • 1 x Sunshield

  • 1 x Installation Guide

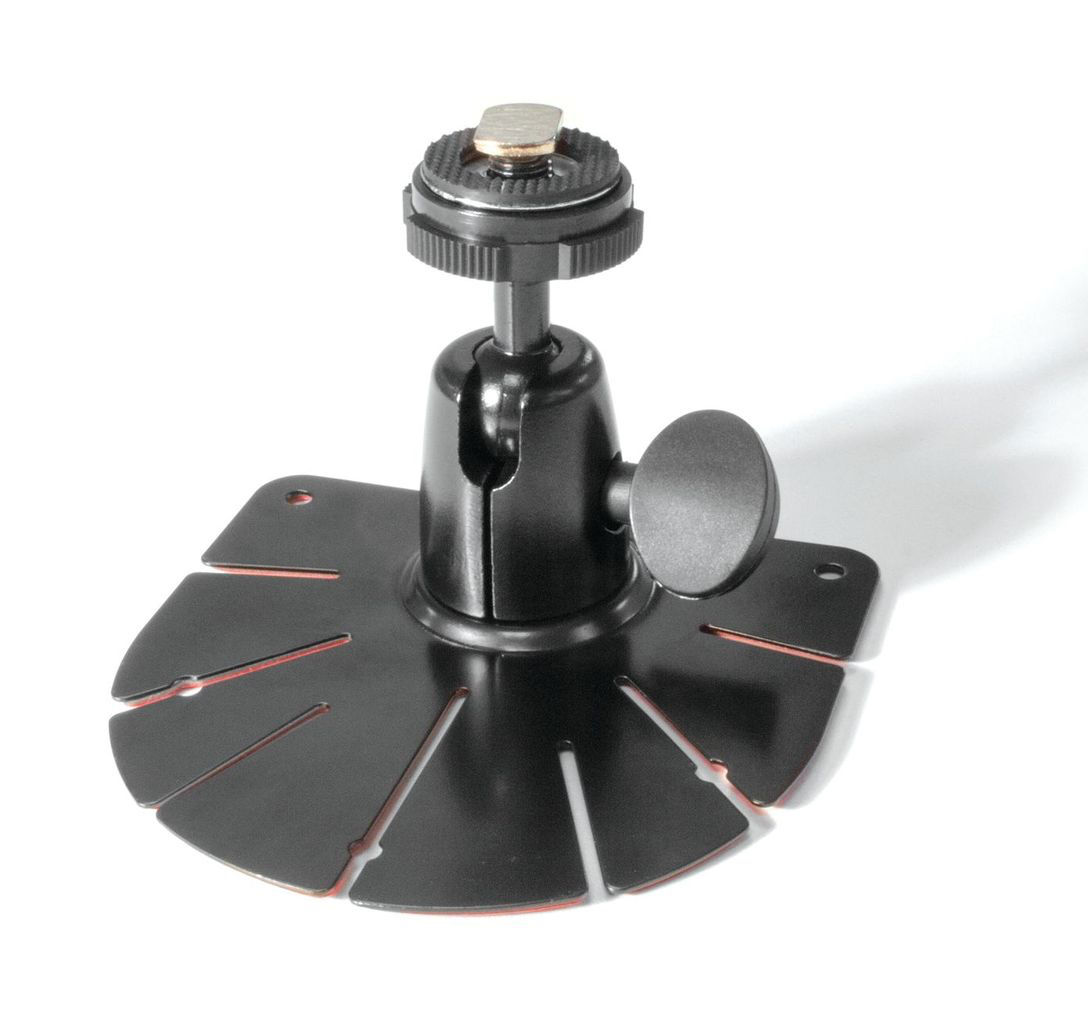

  • 1 x Bracket


Power

  • Power consumption: 10 Watts

  • Current: 0.8Amps


Durability & Standards

  • Mechanical vibration: 4G

  • Mechanical shock: 51G

  • Operating temperature: -30 to +70°C

  • CE marked

  • E-Marked: UNECE R10 compliant

  • HALT tested

  • FCC approved

  • IC approved


Suitable for

Backhoe Loader, Wheel Loader, Excavtor, Telehandler, Large & Medium Dumper & Road Roller
