Brigade Backeye®360 HD Camera System
The Brigade Backeye®360 BN360-360 High Definition Camera System – Part No. 5800 is an advanced 360° surround-view camera system designed to improve visibility and driver awareness on trailers, towing vehicles and specialist trailer combinations. By providing a comprehensive bird's-eye view around the vehicle, the system helps drivers see areas that may otherwise be hidden by blind spots.
The Backeye®360 system combines multiple high-definition cameras to create a 360° panoramic view around the vehicle, making it easier to monitor surroundings when reversing, hitching, parking and manoeuvring in confined areas. This is particularly useful in trailer yards, loading bays, farms, depots, campsites and other locations where space can be restricted and visibility around the trailer may be limited.
The high-definition surround view helps drivers better judge distances and identify obstacles, pedestrians, vehicles and equipment around the towing vehicle and trailer. By improving visibility during low-speed manoeuvring, the system can help reduce the risk of collisions and costly vehicle damage while making reversing and positioning a trailer easier and more confident.
Key Features
Genuine Brigade Backeye®360 BN360-360 HD Camera System
360° high-definition surround view
Bird's-eye camera perspective
Multiple HD cameras provide comprehensive coverage around the vehicle
Helps reduce blind spots around towing vehicles and trailers
Improves visibility when reversing and manoeuvring
Helps identify pedestrians, vehicles, obstacles and surrounding equipment
Ideal for trailer yards, loading areas and confined spaces
Suitable for demanding towing and commercial vehicle applications
Professional Brigade camera technology
Part number: 5800
Specification Overview
12-24Vdc
AHD 1.0 (720p)
15 view modes
2 x video outputs
Ultra-wide viewing angle (HxV): 182° x 118°
Size (WxHxD)
ECU: 178 x 113 x 46mm
Camera: 161 x 50 x 44mm
5-year warranty
Contents
1 x ECU
4 x BN360-1000C cameras
1 x Video output cable to connect to SELECT range monitor

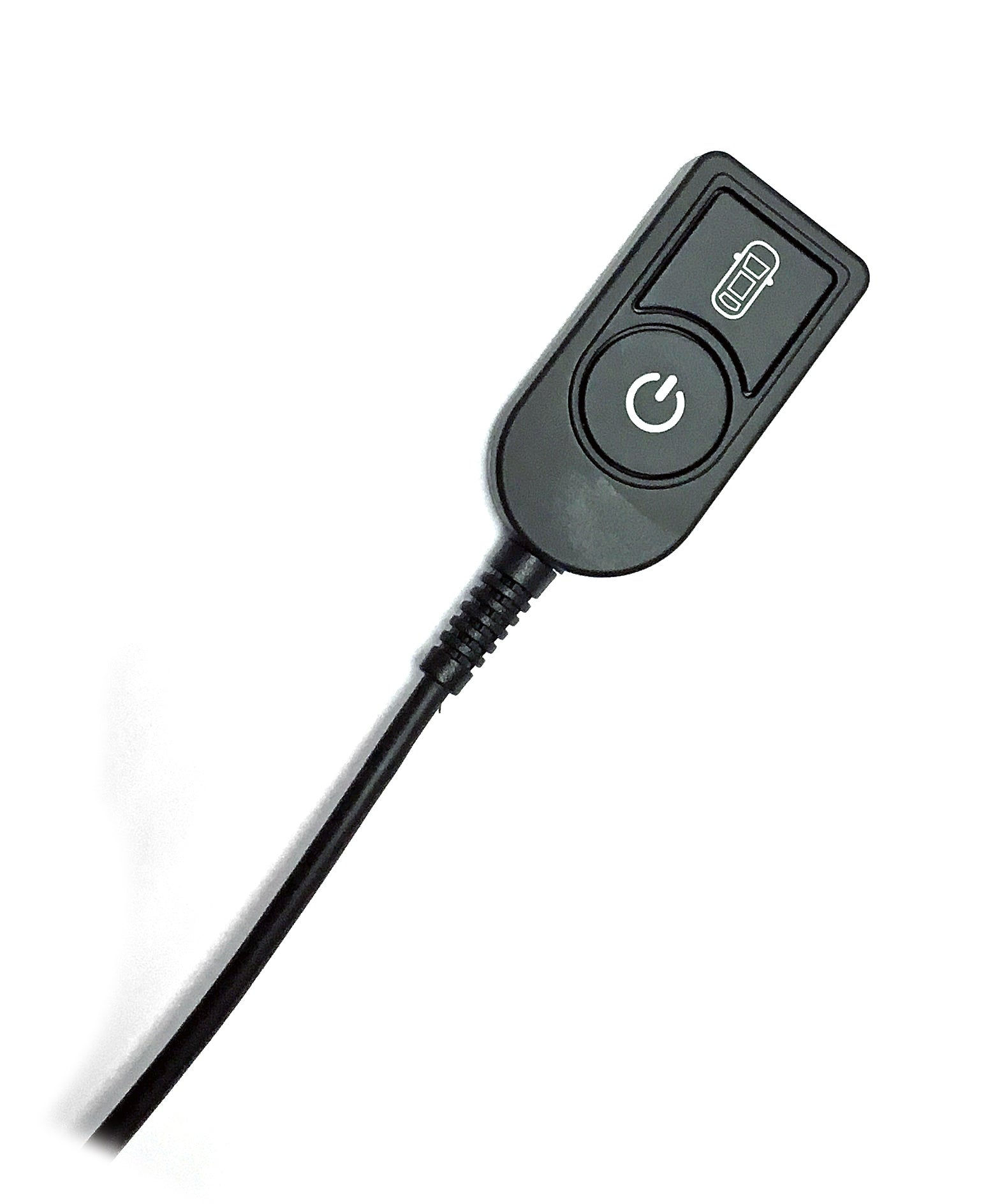

1 x set-up/view select button
1 x ECU power harness
1 x ECU interface/video input harness
Features
720p HD 360° image
15 different view modes (10 x landscape & 5 x portrait configurations)
Front & rear crossing-traffic
Customisable vehicle position
2 pre-defined configuration groups
Configure & customise set up via PC calibration software
Left, right, reverse & speed signal triggers
Configurable on-screen parking markers
Customisable overlay guidelines per camera view
2 x video outputs
Ultra-wide viewing angle cameras: (HxV) 182° x 118°
1/4” CMOS sensor
Video output: AHD 1.0 and NTSC
360 view and individual channels recordable on Brigade MDR recorders
Power
Power consumption: 15 Watts
Current: 1.22 Amps
Durability & Standards
Mechanical vibration: 8.5G
Mechanical shock: 51G
Operating temperature: -30 to +75°C
IP30 ECU
CE marked
E-Marked: UNECE R10 compliant
FCC Approved
IC Approved
ISO 20653:2006
ISO 13766-1:2018
Benefits for Trailer & Towing Applications
Improve visibility around the towing vehicle and trailer
Help reduce blind spots when manoeuvring
Make reversing and hitching easier
Improve awareness of pedestrians, vehicles and obstaclesCommercial Trailers
Plant Trailers
Equipment Trailers
Flatbed Trailers
Tipping Trailers
Agricultural Trailers
Horse Trailers
Car Transporters
Caravan Towing Vehicles
Trailer Towing Vehicles
Specialist Trailer Applications
Help reduce the risk of low-speed collisions
Protect valuable trailers and towing vehicles from costly damage
Increase driver confidence when positioning trailers
Enhance overall towing and vehicle safety
Suitable for
Commercial Trailers
Plant Trailers
Equipment Trailers
Flatbed Trailers
Tipping Trailers
Agricultural Trailers
Horse Trailers
Car Transporters
Caravan Towing Vehicles
Trailer Towing Vehicles
Specialist Trailer Applications
Note: Calibration kit is required for installation
Monitor and camera extension cables are NOT included
